Description	Record # 41
RevDate	Mon, 19 Apr 9841 13:55:50 -0600
Details	This VFO is adapted from the 2N2-40 with some modifications to use a variable capacitor and also changes to the buffer network. The bias voltage for the oscillator is obtained using a LM317 adjusted to this intermediate voltage. I plan to later add a second larger variable capacitor to expand the tuning range. All the pF value caps should be NPO.

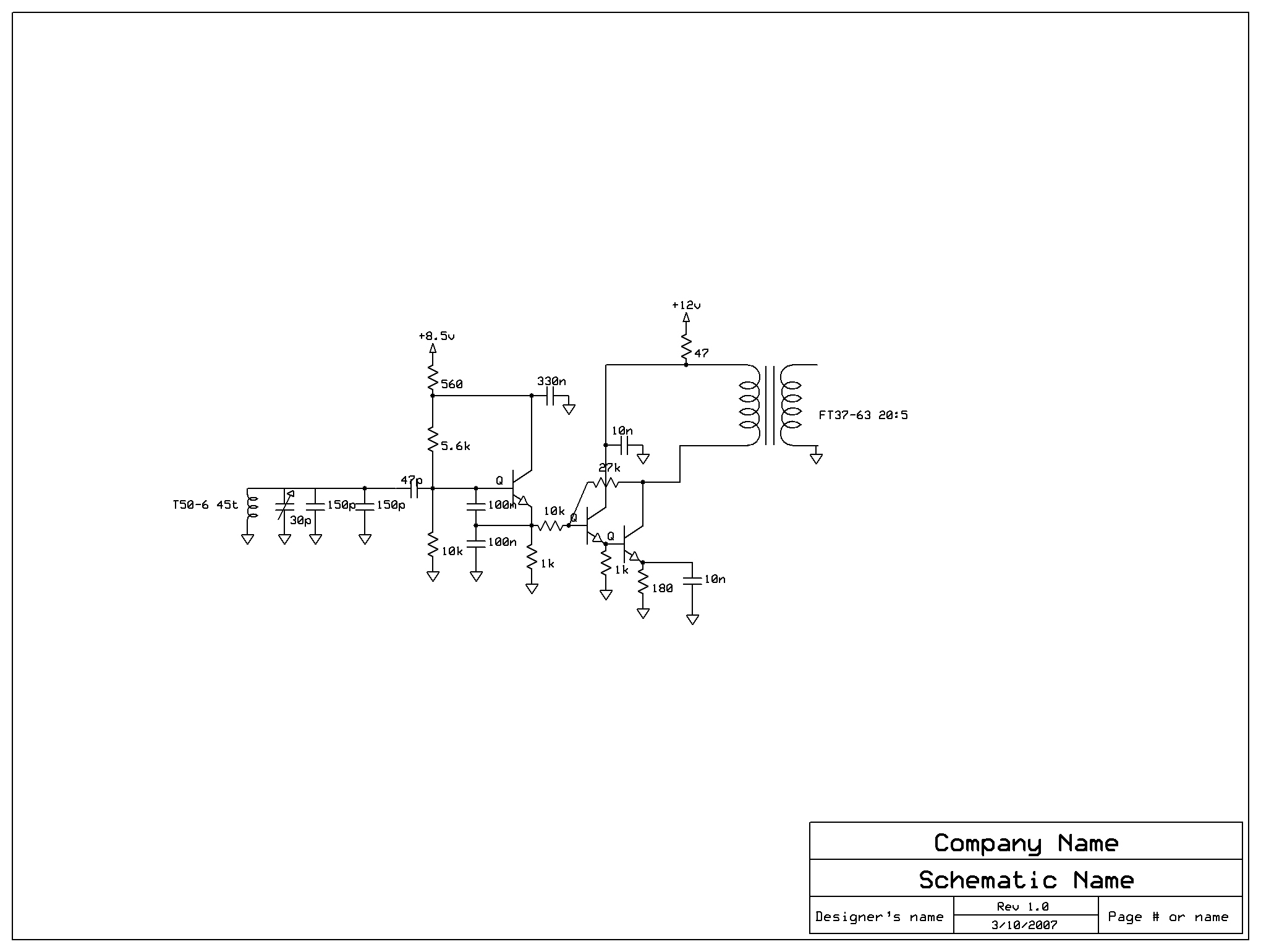

Schematic=Bipolar VFO.jpg                      Return to SEARCH
