miniPIG-10 Case Pictures

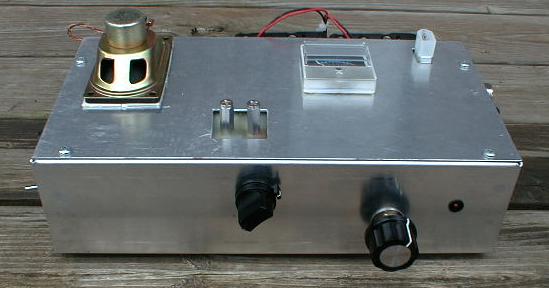

Front 9.5 inches wide, left to right, main tune, antenna tuner variable capacitor and SWR indicator

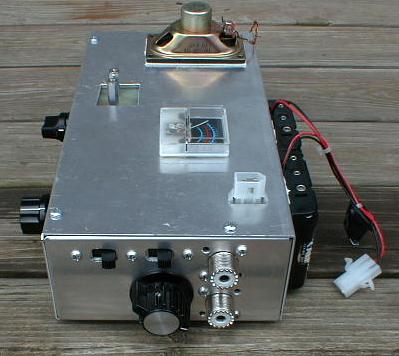

right side 5 inches deep, left to right, SWR switch, LC selector, Inductance switch and output connectors


left side, left to right, external audio, volume and AGC switch

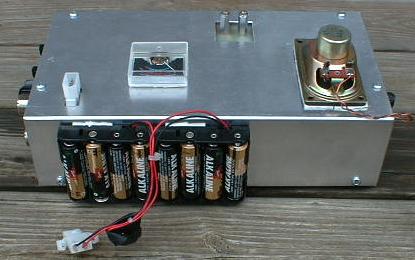

back 2.5 inches tall, showing battery pack

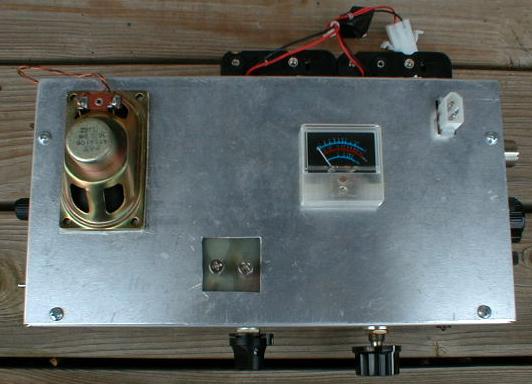

top, left to right, speaker, paddles, AGC/Power meter and power connector


miniPIG-10
in a BUD box
