PigRig Version 1

Last Updated Fri, 22 Apr 2022 11:23:12 -0400
All updates are in the Addendum Section


PigRig Version 1 is sold out.
Here is the link to the new PigRig V2

Build this 5 Watt Single Frequency Transceiver for $40
Full 5 Watts output (7,030.7 KHz) using 13.6 VDC
Full QSK, one Sideband only, Single Conversion Design
Includes built in keyer IC


PDF Instructions in (Spanish) [886K] submitted of Jon, EA2SN

The purpose of this new transceiver is to ...
"Provide a high quality, inexpensive transceiver that encourages special groups of hams to communicate with minimal effort."

This transceiver was designed for Radio Clubs and/or Special Events.
You turn the radio on...you listen...you do not tune...you do not switch anything...you do not search.
If you hear someone on "your special frequency", there is a good chance it could be a member of your group.

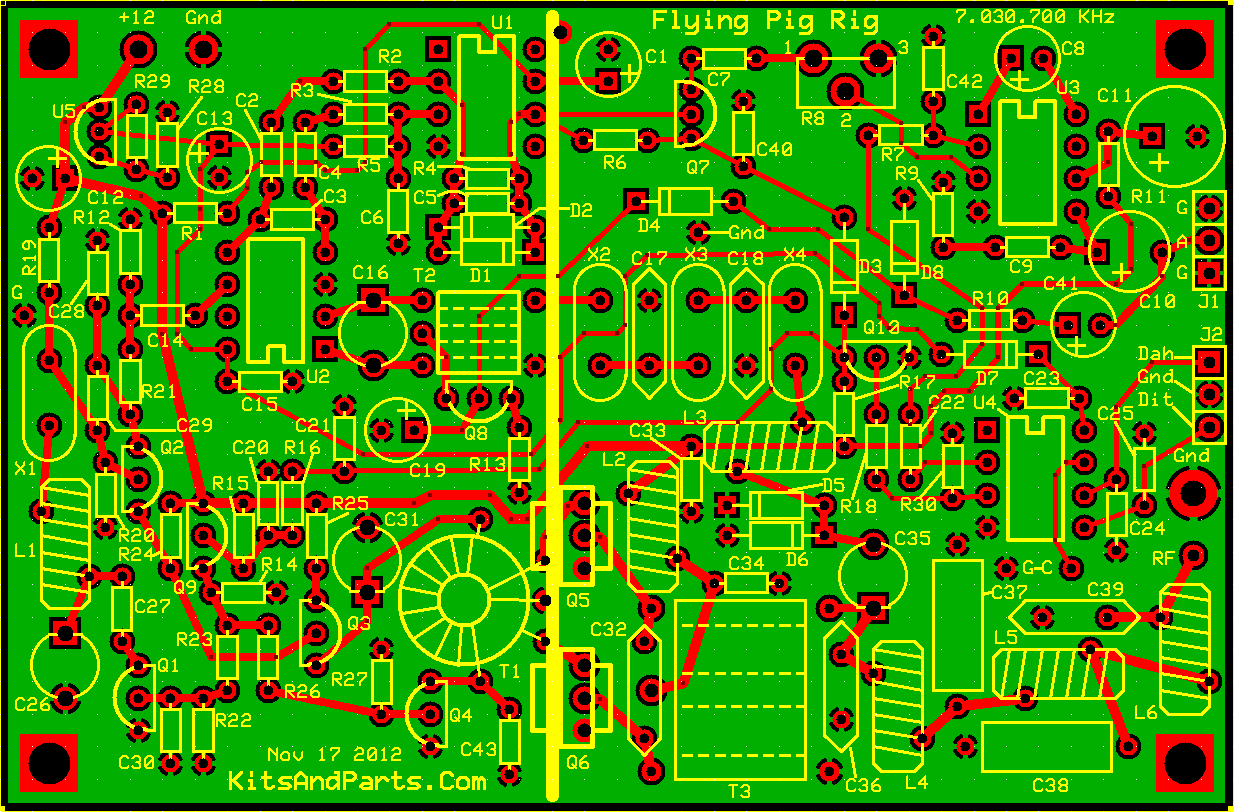

The size of the PCB is only 2.5" (63,5 mm) by 3.8" (96,5 mm), and Yes...it does produce a full 4.99 watts RF out
and it is as sensitive as just about anything else that you may have in your radio shack.
Custom club/group frequencies are available for 40 meters.
The name of this radio shall henceforth be labeled "The Flying Pig Rig".






Building Instructions:


1. Inventory all Parts. Parts List Read the below section before you start building.

    If you are missing any parts, contact me immediately. I and will ship the parts the same day.

    This kit includes all electrical parts to create a functioning transceiver, including
    2 phone jacks, a bnc jack, a push-button, volume/on-off switch, magnet wire, heat sink mounting screws and nuts.
    This kit uses four (4) all black ferrite toroids. One (1) FT37-43 and three (3) FT37-61 toroids; they look the same.
    The FT37-43 is included in the bag with the very small binocular ferrite and 34 ga wire
    The 5R1 (5.1) ohm power resistor is used to install and support the heat sink
    Install the parts in the order show to prevent mechanical installation problems down the line

    Each PigRig is provided with a Serial Number, attached to the bag holding the PCB and 26 ga wire
    Attach the label to the rear of your PigRig enclosure or wherever suitable
    The Serial Number may later be used for tracking in Worked All PigRigs contests :)

    This kit requires the following items to complete the kit:
    hook-up wire to connect the controls to the printed circuit board (PCB)
    Heat sink compound for the RF Finals (Radio Shack Catalog #: 276-1372)
    Flat head hammer or similar tool to fabricate the heat sink
    1/8th inch drill bit and a drill to create mounting holes for the heat sink

    Any Addendums will be listed by date at the end of this document

2. Install all 1/8 Watt Resistors.
    You will need a magnifying device to verify the resistor color codes.
    Be careful not to mix up the one 1K and the nine 10K resistors.
    Bend the resistor leads a sharp 90 degrees from the body of the resistors.
    The volume control R8 is installed last.
    Save 3 cut resistor leads for use later to ground the crystal cases.

____R14: 1K Brown-Black-Red-Gold
____R10,15,17,18,19,22,23,27,30: 10K Brown-Black-Orange-Gold
____R6: 1M Brown-Black-Green-Gold
____R1,9,11: 10 Brown-Black-Black-Gold
____R2,3,16,26: 4K7 Yellow-Violet-Red-Gold
____R7: 4M7 Yellow-Violet-Green-Gold
____R13: 1K2 Brown-Red-Red-Gold
____R20: 5K6 Green-Blue-Red-Gold
____R4,5: 220K Red-Red-Yellow-Gold
____R29: 240 Red-Yellow-Brown-Gold
____R25: 27 Red-Violet-Black-Gold
____R12,24: 68 Blue-Gray-Black-Gold
____R21,28: 910 White-Brown-Brown-Gold


3. Prepare inductor L2.
   Remove the round toroid from the packet that contains the 1/4 inch binocular ferrite

____L2: Wind 12 turns of 26 GA red magnet wire on an FT37-43 ferrite toroid, evenly spaced.
   Cut 12 inches of 26 GA wire. Wind the wire on the toroid clockwise.
   Trim the wires of L2 to a half inch each.
nopix
   Strip the insulation to the base of the toroid using a hot solder pencil
   This part will be installed later.


4. Install transformer T2.
    T2 xfmr is a BN-61-2402 binocular core threaded with fine 34 GA magnet wire.
____Cut 10 inches (25 cm) of 34 GA red magnet wire and fold the wire in half.
    Using needlenose pliers, grip the wire at the fold and tightly twist
    from the folded end for about 1/3 inch (1 cm), about 5 or 6 tight twists
    Tin the twisted part of the wire using solder and hot solder pencil.
    The plastic insulation will melt and the solder will tin the wire after
    applying heat and solder for about 10-15 seconds.
    Move the solder pencil back and forth to generate a little friction on the wire.

    Insert the wire ends thru the binocular holes.

    Insert each wire end thru the opposite hole.
    We now have two (2) full turns with a center tap.

    Repeat 6 more times for a total of 8 full turns.
    A full turn is defined as a wire going thru both holes of the binocular.
    Trim the wire ends to about 1/2 inch and tin with solder.

____Cut 4 inches (10 cm) of 34 GA red magnet wire and fold the wire in half.
    Insert the wire ends thru the binocular holes as pictured
    Insert each wire end thru the opposite hole and tighten the turns
    This creates two full turns. Cut to 1/2 inch each and tin.

    This is what T2 should look like.

    Insert T2 into the top of PCB and solder on the bottom, trimming excess leads.


5. Install transformer T1. This xfmr is an FT37-61 toroid with
   10 turns primary and 2 turns secondary, centertapped (40 meters) or
   11 turns primary and 2 turns secondary, centertapped (80 Meters)
____Cut 9 inches (23 cm) of red 26 GA magnet wire and tightly wind 10 or 11 turns on the toroid.
   Wind T1 toroid in a clockwise direction - Generic Toroid Winding Example
   Prepare the toroid wires for soldering

____Cut 4 inches (10 cm) of red 26 GA magnet wire and fold the wire in half.
    Using needlenose pliers, grip the wire at the fold and tightly twist
    from the folded end for about 1/3 inch (1 cm), about 5 or 6 tight twists
    Tin the twisted part of the wire using solder and hot solder pencil.
    Using solder and a solder pencil, tin 1/2 inch of each wire, about 1/2 inch away from the twist junction.

    Install the wire by inserting the twisted end into the PCB as shown. Solder and trim.
    The insert location is immediately to the left of the Q5 label on the PCB (center tap hole)
    Insert one of the free wire ends thru the toroid as shown.
    Insert the 10/11 turn wires into their installation holes, leaving about 1 inch slack above the PCB.
    Bring the wire that is protruding thru the top of the pcb over and around the toroid and insert the end into the hole above the center tap hole.
    Bring the other open wire over and down thru the toroid and insert into the hole below the center tap hole.
    Slowly, tighten the wires and pull the toroid down to the PCB, by alternating pulls on the 4 unsoldered wires.

    When the toroid is mounted flush on the PCB, solder and clip leads.
    Make sure that ALL the leads going thru the holes are tinned and ready for soldering.



6. Install transformer T3.
    This xfmr uses the larger BN-43-302 binocular,
    2 turns primary centertapped and 2 turns secondary for 40 meters or
    4 turns primary centertapped and 4 turns secondary for 80 meters.
    T3 is made just like T2 except for wire length and turns.
    Cut 5 or 9 inches of 26 GA wire and create a 2 or 4 turns primary centertapped.
    Cut 4 or 8 inches of 26 GA wire and create a 2 or 4 turns secondary.
    Install into the PCB, tighten all wires, solder and trim leads.


7. Install all ICs and one IC socket.
    A socket is included for the Keyer Chip Only. You may optionally provide your own
    sockets for the other ICs but that is not be necessary nor is it required
    It is possible to reprogram/replace the keyer chip in the future

____U5: LM317L voltage regulator; note orientation on the PCB
____U4: Install the 8 pin machine socket at U4 with the notch pointing up towards C23
____U4: Insert the ATmel ATtiny keyer chip into U4 socket, the dot positioned towards C23
____U1: NE5534AP with the dot pointing to the upper edge of the PCB
____U2: NE602A with the dot pointing to the LOWER edge of the PCB towards C16
____U3: LM-386N-4 with the dot pointing to the upper edge of the PCB


8. Install all Diodes.

____D3,7: 1N4148 red glass diodes
____D1,2,4,5,6,8: 1N5711 blue glass diodes


9. Install all Crystals and 2 capacitors.
    When installing the crystals, tilt the crystals while soldering
    This will raise the crystal a small bit above the PCB
    and will prevent trace shorts to the case of the crystal

____X1: 7031 or 3561 or 7122 crystal with a black mark on one side
____X2,3,4: 7031 or 3561 or 7122 without the black mark (highly matched and quality checked)
____C17,18: 470p (471J) orange disk cap; install between the crystals.

    Solder one resistor lead accross the top of all 3 crystals in the filter
    Solder one resistor lead from the top of X4 to the ground below
    Solder one resistor lead from the top of X1 to the ground below


10. Install all remaining capacitors.
    Do not install C32. It will be installed later.

____C2,4,7,9,23,33,34,42: 100n (0.1uF) small yellow caps
____C3,14,15,40,43: 47n (0.047uF) small yellow caps
____C26: 40p yellow trimmer cap - flat side into square hole
____C16,31,35: 60p brown trimmer caps - flat side into square hole
____C5,6: 220p (221) small yellow caps
____C28: 220p (221J NPO) dark tan disk cap
____C1,12,13,41: 33uF black electrolytic - observe polarity
____C8,19: 10uF black electrolytic - observe polarity
____C11: 470uF black electrolytic - observe polarity
____C20,21,30: 10n (103) dark tan disk cap
____C22: 22p (22J NPO) dark tan disk cap
____C24,25: 1n (102) dark tan disk cap
____C27: 12p NPO dark tan disk cap with black dot (added 15 pF option - see addendum 2013 Jan 16)
____C29: 150p (151J) NPO dark tan disk cap
____C36,39: 270p (271J) or 470p (471) dark tan disk cap (C32 is installed later)
____C37,38: 680p (680J) clear/silver polystyrene cap
____C10: 47uF black electrolytic - observe polarity


11. Install all Transistors except the RF power amps

____Q1,2,8: 2N3904
____Q3,9: 2N3906
____Q4,10: 2N7000
____Q7: J113


12. Wind and install all remaining Toroid Inductors except L2.

____L1: For 40 meters, wind 17 turns of 26 GA red magnet wire on an FT37-61 ferrite toroid, evenly spaced.
____L1: For 80 meters, wind 24 turns of 27 GA red magnet wire on an FT37-61 ferrite toroid, evenly spaced.
   For 40 meters, cut 11" of 26 GA wire. Wind the wire on the toroid clockwise.
   For 80 meters, cut 15" of 27 GA wire. Wind the wire on the toroid clockwise.
   Trim the wires of L1 to a half inch each.
nopix
   Strip the insulation to the base of the toroid using a hot solder pencil
   Install into the PCB, pull the leads tight using needle nose pliers, solder and trim
   You should be able to straighten the toroid to match the outline on the PCB

____L3: For 40 meters, wind 18 turns of 26 GA red magnet wire on an FT37-61 ferrite toroid, evenly spaced.
____L3: For 80 meters, wind 27 turns of 27 GA red magnet wire on an FT37-61 ferrite toroid, evenly spaced.
   For 40 meters, cut 11" of 26 GA wire. Wind the wire on the toroid clockwise.
   For 80 meters, cut 15" of 26 GA wire. Wind the wire on the toroid clockwise.
   Trim the wires of L3 to a half inch each.
   Strip the insulation to the base of the toroid using a hot solder pencil
   Install into the PCB, pull the leads tight using needle nose pliers, solder and trim
   You should be able to straighten the toroid to match the outline on the PCB

____L4,6: For 40 meters, wind 20 turns of 26 GA red magnet wire on an T37-7 white toroid, evenly spaced.
____L4,6: For 80 meters, wind 20 turns of 26 GA red magnet wire on an T44-2 red toroid, evenly spaced.
   Cut 12" (40m) or 15" (80m) of 26 GA wire. Wind the wire on the toroid clockwise.
   Trim the wires of L4,6 to a half inch each.
   Strip the insulation to the base of the toroid using a hot solder pencil
   Install into the PCB, pull the leads tight using needle nose pliers, solder and trim
   You should be able to straighten the toroid to match the outline on the PCB

____L5: For 40 Meters, wind 23 turns of 26 GA red magnet wire on an T37-7 white toroid, evenly spaced.
____L5: For 80 Meters, wind 22 turns of 26 GA red magnet wire on an T44-2 red toroid, evenly spaced.
   Cut 13" (40m) or 16" (80m) of 26 GA wire. Wind the wire on the toroid clockwise.
   Trim the wires of L5 to a half inch each.
nopix
   Strip the insulation to the base of the toroid using a hot solder pencil
   Install into the PCB, pull the leads tight using needle nose pliers, solder and trim
   You should be able to straighten the toroid to match the outline on the PCB


13. Prepare the Copper Heat Sink & Install the RF Final Transistors.
   This Kit uses a custom pure copper heat sink that will require preparation.
   Flatten the Copper pipe clamp using your hands, a vise, and a flat head hammer.
   Hammer it until it is totally flat; may take a few minutes, but Copper is soft.
   With a pen, mark 2 drill holes exactly 0.5 inch and 1.0 from one end, centered from top/bottom.
   If you have a punch, punch the copper at the marks for easier drilling accuracy.
   Drill 2 holes using an 1/8 inch drill bit to accommodate a size 4-40 screw.
   Deburr the holes using a larger drill bit or other hard tool.
   The heat sink will extend about 0.15 inches from the lower edge of the PCB
   If you wish, cut of the excess copper per the picture; file/sand/deburr.
   Cut one lead from the 5R1 power resistor. Solder to the end of the heat sink per picture
   This will require quite a bit of heat from your soldering tool

nopix

____Q5,6: BD139-16 Loosely mount the RF Finals to the Heat Sink using the nuts and screws provided,
   Make shure that the part number (BD139-16) is visible, facing to the right, away from the heat sink.
   Apply a little heat sink grease between the heat sink and the finals.
   Fully insert the assembly into the Q5 and Q6 labeled locations.
   If you have an IC socket installed at U1, then the assembly should be raised about 0.2 inches
   or enough so that the heat sink does not short to pins 5-8 on U1.

nopix

   Solder both transistors and the cut resistor lead, per the patern on the PCB
   all the time keeping the heat sink parallel to the PCB.

____L2: Locate the previously prepared toroid with the 12 turns red magnet wire.
   Install into the PCB, pull the leads tight using needle nose pliers, solder and trim
   You should be able to straighten the toroid to match the outline on the PCB

____C32: For 40 meters, 270p (271J) NPO dark tan disk cap; install between the finals and T3.
____C32: For 80 meters, 470p (471) NPO dark tan disk cap; install between the finals and T3.



14. Connections.
   BEFORE YOU APPLY POWER TO THE PIGRIG...
   Make sure your power polarity is correct
   else you will be replacing ICs and the Finals


   Recommend chassis/enclosures (Black Color) for the PigRig are from Ten-Tec
   The TP/TPB/TPC-19 ($7.81) and TP/TPB/TPC-41 ($9.15) are ideal for this project.

   Connect the 10K volume pot w/switch to R8 via your shielded audio cable
   Using one shielded cable, connect the inner conductor from R8(2) to pin-3 on the volume control
   Connect the cable ground shield to R8(3) and pin-2 on the volume control
   Using a second shielded cable, connect the inner conductor from R8(1) to pin-4 on the volume control
   Connect the cable ground shield to R8(3) and pin-2 on the volume control
ext_pot.jpg ext_pot.jpg
   Connect a Speaker or Headphones to J1 via one of the 3.5 mm phono connectors
   Connect an Antenna to J4 via the provided BNC connector or connect your own RF output connector
   Connect paddles or a straight key to J2 via the other 3.5 mm phono connector
   Connect the Push Button Switch via 2 wires to the PCB holes below pins 4 and 5 of U4, labeled "G-C"
   Connect +13V volts (+/- 1 volt) to the holes in the upper left corner of the PCB.
   If you live near AM broadcast stations, you should install a common mode choke in the 12V power wires.
   Make a choke using the FT50-75, half inch diameter black toroid with 5 turns of dual 26 gauge wires.
   Do not let the power supply ground connect directly to any metal box ground
   The power supply ground must connect to the PCB/chassis through the choke only.
   A 1/4 inch Rubber Grommet is included to protect power wires running through a chassis/enclosure wall.


15. Transmit Frequency Alignment using a Frequency Counter or a Calibrated Accurate Receiver (CAR)

   The center frequency of the front end crystal filter (X2,3,4) is 7,030,700 Hz +/- 30 Hz
   We need to adjust our Transmit Oscillator to that frequency by adjusting the yellow trimmer capacitor C26 on the left side of the PCB
   Connect a 5 watt or greater 50 ohm dummy load to the antenna connector. Connect a frequency counter to the RF ouput.
   Apply 10 (ten) Volts DC power...this prevents damage to the finals in case there is an error with the binocular ferrite.
   Most Freq Ctrs are sensitive enought to measure the RF ouput by connecting the FC probe onto anything metallic on/near the dummy load.
   if this is not the case, connect the FC directly to the RF output, or through a small coupling capacitor, less than 10 pF.
   Place the keyer into straight key mode (see below) and key the transmitter; adjust C26 for a frequency of 7,030,700 Hz +/- 10 Hz
   If you do not have a frequency counter, use a calibrated accurate receiver, setting the receive freq to 7,030.7 KHz
   Place the keyer into straight key mode and key the transmitter; adjust C26 for an audio freq of 600 Hz +/- 25 Hz coming from your CAR.
   This completes the transmitter output frequency alignment.
   The oscillator switches between receive and transmit modes by including the 12 pF or 15 pF capacitor C27 in parallel with C26 when in transmit mode.
   When C27 is not grounded through transistor Q1, the X1 oscillator frequency is about 600 Hz higher, which provides the receive mode offset frequency.
   When a received signal is directly in the middle of the bandpass (7,030.7 KHz), you will hear the signal as 600 Hz +/- from the speaker/headphones.


16. Transmit Driver Alignment.

   Apply 10 (ten) Volts DC power...this prevents damage to the finals in case there is an error with the binocular ferrite.
   Adjust C31 for maximum transmitter output - should be about 1 Watts using 10 Volts DC
   If you do not get 1 Watt output, fix the problem before continuing
   Apply 13.6 Volts DC and Adjust C31 for maximum transmitter output.
   You can use a wattmeter or SWR meter or receiver to adjust C31 for maximum output.
   Using 13.6 volts and a 50 ohm dummy load, you should have 5 Watts output (44 volts peak-to-peak on a scope)
   This completes the transmitter driver alignment.


17. Receiver Alignment using a 7,030.7 KHz signal source.

   Adjust the input and output tuned circuits connected to the crystal filter (X2,3,4)
   Connect any antenna to the Pig Rig. Anything from a 2 foot wire up a large antenna.
   Turn on a signal source in the shack. Either a low power transmitter into a dummy load or a sig-gen.
   Adjust C16 and C35, back and forth for maximum audio (approx 600 Hz) coming from the speaker/headphones.
   The lower the signal level from the source, the easier it is to adjust C16 and C35
   It is important to note that the signal source be 7,030.7 to optimize the bandpass filter for a narrow bandwidth.
   This completes the receiver alignment.


The Flying Pig Rig Keyer Instructions

   This is a very basic Keyer (ATmel AVR Assembler Source Code available upon request)
   On power-Up, the keyer defaults to 15 WPM and a sidetone of 625 Hz and annunciates "OO" (without keying the XMTR)

   The internal timing oscillator in the Keyer Chip is an RC oscillator that runs at 9.6 MHz +/- 10 pct Factory Calibration.
   Typical accuracy is +/- 5 percent; The accuracy can be impoved to +/- 2 percent if one takes the time to calibrate
   the oscillator and reprogram the keyer chip. This procedure is too time consuming for 200 chips but may be OK for you.
   The accuracy is typically +/- 5 pct so your sidetone may be off by +/- 5 pct and your keying WPM may also be off.
   That means if you set the WPM speed to 20 WPM, you may actually have it set at 19 or 21 WPM; should not be a problem.

   The keyer is placed into the "Command" mode by pressing and releasing the Cmd Button.
   The keyer has the following commands available after pressing the Cmd Button:

   "E" (.) or "T" (-) Toggles between normal keyer and straight key mode, acknowleged by annunciating "R" in CW.

   "R" (.-.) Toggles between normal and reverse paddles keys, acknowleged by annunciating "R" in CW.

   "S" (...) Set keyer speed in WPM. Speed is entered as two numerical digits.
      After sending the "S" command, the keyer sends a DIT (e) as a prompt for the first speed character (0-4)
      After sending the first speed number, wait for another DIT (e) prompt and send the 2nd number (0-9)
      Depending upon what you enter, you will hear a "?" for ERROR or an "R" for a "Roger" acknowlegement.
      Valid keyer speeds are 1 to 45 WPM (good luck trying to send/use 1 WPM)

   "F" (..-.) Sets the sidetone frequency.
      After sending the "F" command, the keyer sends a DIT (e) as a prompt for the tone character (0-9)
      Depending upon what you enter, you will hear a "?" for ERROR or an "R" for a "Roger" acknowlegement.

      The following table equates the sidetone number with the sidetone frequency:

      9 = 357 hz
      8 = 385 Hz
      7 = 417 Hz
      6 = 455 Hz
      5 = 500 Hz
      4 = 555 Hz
      3 = 625 Hz
      2 = 714 Hz
      1 = 833 Hz
      0 = 1000 Hz

   To Reset the Keyer to the Default mode, hold the Cmd button active until you hear "OO"
   Then immediately release the Command Button, else you will send another Command request.

The PigRig is now finished, ... except for your first QSO.  See you on 7,030.7 KHz.



Addendum Section:

2012 Dec 07 - received PCBs from http://expresspcb.com
2012 Dec 08 - built first PigRig, serial number '0'
2012 Dec 09 - completed kits for distribution
2012 Dec 09 - modified section 13; optional installed IC socket for U1 and heat sink conflict.
2012 Dec 09 - added picture of completed pigrig in a tentec box (TP/TPB/TPC-19)
2012 Dec 10 - PigRig starts shipping
2012 Dec 15 - Added Parts List
2012 Dec 15 - If you want to talk about building the kit...my Skype ID is w8diz_ that's with an underscore
2012 Dec 17 - Added instructions for the Keyer Push Button Command Switch in Section 14
2012 Dec 19 - Installation of C43 (47n) is now recommended - slight improvement in transmit output
2012 Dec 20 - Corrected parts list - R13 from 560 ohms (bad) to 1K2 ohms (good) per schematic
2012 Dec 21 - Test transmitter output using 10 Volts DC = 1 Watt RF output before applying 13.6 Volts for full output.
2012 Dec 22 - Schematic tilted 90 degrees for easier printing for some folks

2012 Dec 27 - Scope Signal Levels Peak-Peak and DC voltages in the Oscillator - Driver RF chain using 14 Volt DC Supply

LocationRcve-DCRcve-SigXmit-DCXmit-Sig
U2 Pin65.25Vdc280mVrf5.24Vdc280mVrf
Q2 Collector13.5Vdc1.4Vrf13.25Vdc2.0Vrf
Q3 Emitter13.9Vdc880mVrf13.4Vdc1.1Vrf
Q3 Collector14.0Vdc1.2Vrf.01Vdc14Vrf


2012 Dec 27 - Variable capacitor settings

Maximum CapacitanceMidway CapacitanceMinimum Capacitance


2012 Dec 29 - All PigRig purchases on or after Dec 29, 2012 include a new keyer chip - see below
2012 Dec 29 - Updated Keyer Docs Keyer Text Document Dec 29, 2012
2013 Jan 03 - If you need an alignment tool for the trimmers, look up "GC 8608" - available at newark.com and onlinecomponents.com
2013 Jan 04 - Version 2 of the keyer is available to current PigRig owners for $2(USA), $3(DX)
                     or available free if you mail in your old chip (not recommended)
                     or available free when making any kitsandparts purchase (recommended).
                     Paypal ID for purchases is info5 at kitsandparts dot com
2013 Jan 10 - Bandwidth scan of the 3-crystal front end filter.
2013 Jan 16 - If you find that your XMIT/RCVE offset is too low, you can increase the offset by replacing C27, the 12 pF cap with a 15 pF cap,
                     added to the kits after 01/16/13, or you can add one turn to L1 and re-align the xmit freq.
2013 Jan 17 - PigRig PDF Documentation as of Jan 17, 2013.
2013 Apr 19 - New Keyer Source Code Keyer Source Code Apr 19, 2013

End of Addendum Section:   top

Toroids, Ferrites
