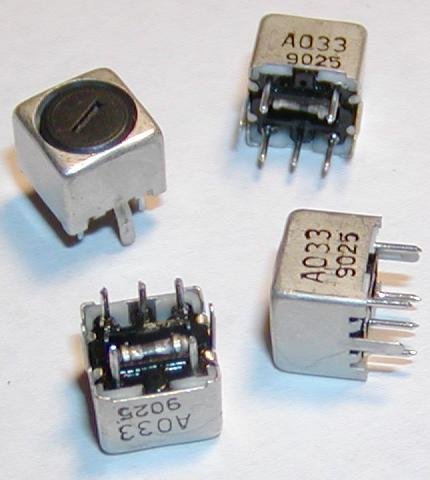

Consisting of a fixed 1365 pF capacitor and 53 turns to make the 65-95 uH variable inductor
Electrical Schematic Layout:

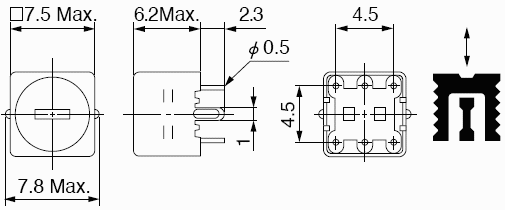

Mechanical Dimensions in mm:
Remove the 1360 pF capacitor and the inductor is usable from 100 KHz up to 2 MHz
or remove wire and add a secondary coil to meet your applications
