Description
Record #
9
RevDate
Wed, 22 Nov 2006 09:09:00 -0600
Details

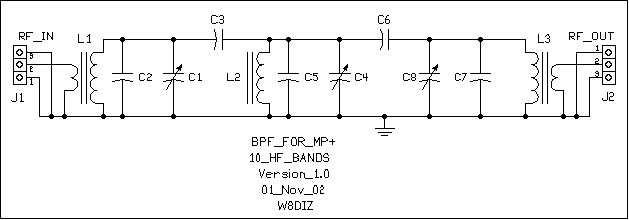

BAND L1 L2 L3 C2,C5,C7 C3,C6 160M 46T:4T:T37-2 47T:T37-2 46T:4T:T37-2 820pF 12pF 25``#32+4``#32 25``#32 25``#32+4``#32 80M 30T:3T:T37-2 30T:T37-2 30T:3T:T37-2 470pF 6.8pF 17``#28+4``#28 17``#28 17``#28+4``#28 60M 29T:3T:T37-2 29T:T37-2 29T:3T:T37-2 220pF 4.7pF 17``#28+4``#28 17``#28 17``#28+4``#28 40M 27T:3T:T37-2 27T:T37-2 27T:3T:T37-2 130pF 3.0pF 16``#27+4``#27 16``#27 16``#27+4``#27 30M 25T:2T:T37-6 25T:T37-6 25T:2T:T37-6 100pF 2.7pF 15``#27+3``#27 15``#27 15``#27+3``#27 20M 21T:2T:T37-6 21T:T37-6 21T:2T:T37-6 68pF 1.5pF 13``#27+3``#27 13``#27 13``#27+3``#27 17M 18T:2T:T37-6 18T:T37-6 18T:2T:T37-6 43pF 1.0pF 11``#27+3``#27 11``#27 11``#27+3``#27 15M 17T:2T:T37-6 17T:T37-6 17T:2T:T37-6 33pF 1.0pF 11``#27+3``#27 11``#27 11``#27+3``#27 12M 15T:2T:T37-6 15T:T37-6 15T:2T:T37-6 33pF 1.0pF 10``#27+3``#27 10``#27 10``#27+3``#27 10M 14T:2T:T37-6 14T:T37-6 14T:2T:T37-6 none 1.0pF 9``#27+3``#27 9``#27 9``#27+3``#27
