Record #
8
RevDate
Wed, 22 Nov 2006 09:04:00 -0600
Details
BAND L1/L3 Coverage-Wire length L2 Coverage-Wire length C1 & C4 C2 & C3 ---- ------------------------ ------------------------ ------- ------- 160M 20T-T50-1-80% 4.44uH-15`` 23T-T50-1-85% 5.61uH-17`` 820pF 2200pF 80M 21T-T44-2-85% 2.43uH-14`` 23T-T44-2-85% 3.01uH-15`` 470pF 1200pF 60M 19T-T44-2-85% 1.97uH-13`` 21T-T44-2-85% 2.29uH-14`` 470pF 1000pF 40M 17T-T44-6-80% 1.38uH-12`` 19T-T44-6-80% 1.70uH-13`` 270pF 680pF 30M 15T-T44-6-80% 1.09uH-11`` 16T-T44-6-80% 1.26uH-11`` 270pF 560pF 20M 15T-T37-6-85% 0.77uH-10`` 16T-T37-6-80% 0.90uH-10`` 180pF 390pF 17M 13T-T37-6-80% 0.55uH-9`` 14T-T37-6-85% 0.67uH-9`` 110pF 270pF 15M 11T-T37-6-80% 0.44uH-8`` 13T-T37-6-80% 0.56uH-9`` 82pF 220pF 12M 11T-T37-6-80% 0.44uH-8`` 12T-T37-6-70% 0.52uH-8`` 100pF 220pF 10M 9T-T37-6-65% 0.30uH-7`` 10T-T37-6-60% 0.38uH-7`` 56pF 150pF
Password required to update this circuit entry.
Password

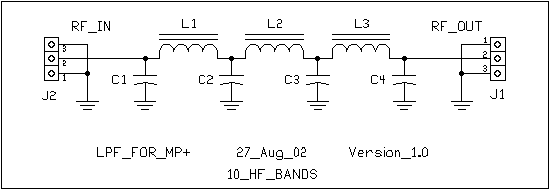

Schematic=
