Record #
47
RevDate
Wed, 23 Apr 2014 18:26:43 -0500
Details

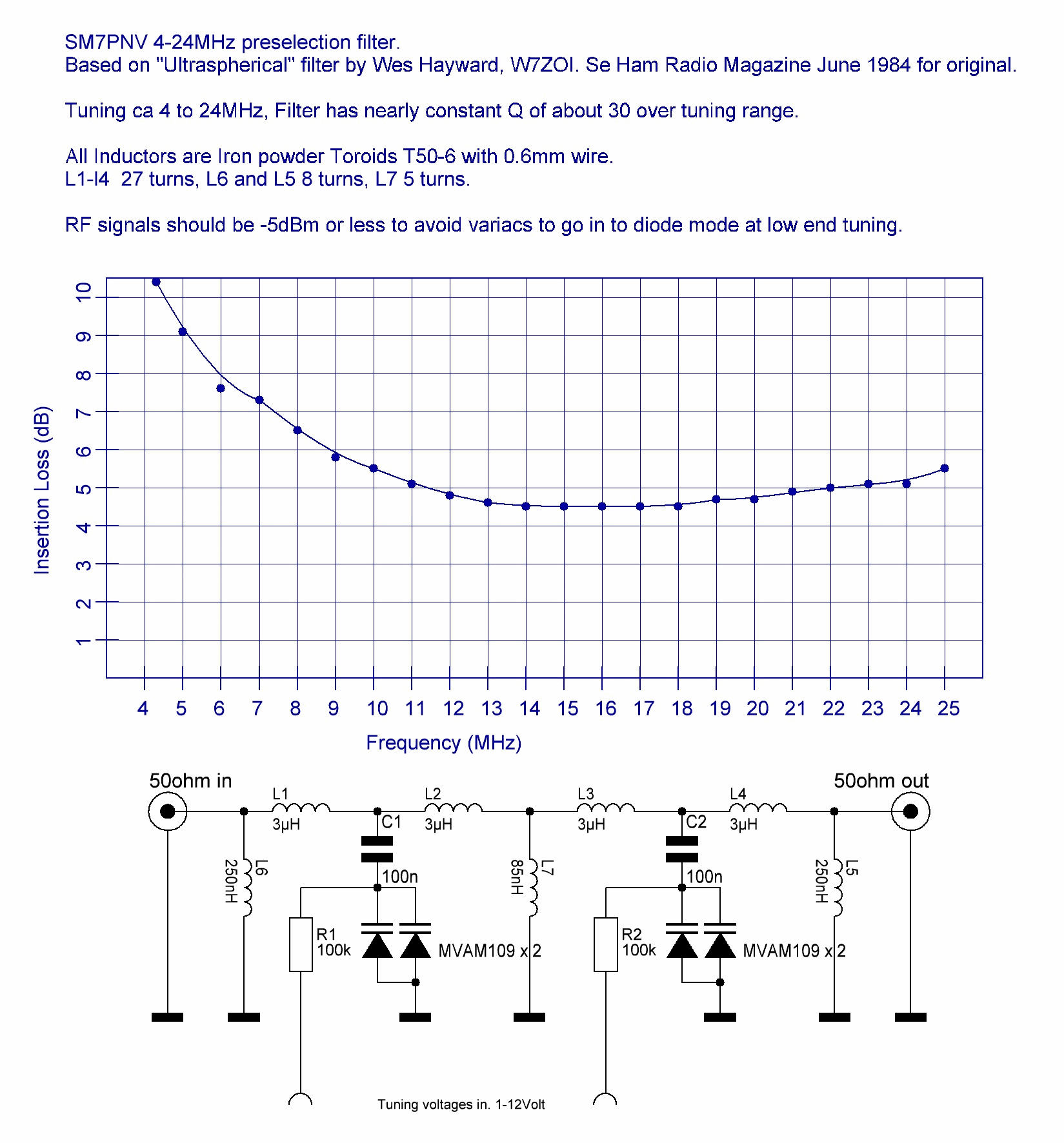

Original filter design used linked variable capacitors and had IL around 2dB. The Variacs used add another 2.5 dB but circuit should be OK on HF bands.
Password required to update this circuit entry.
Password
Schematic=
