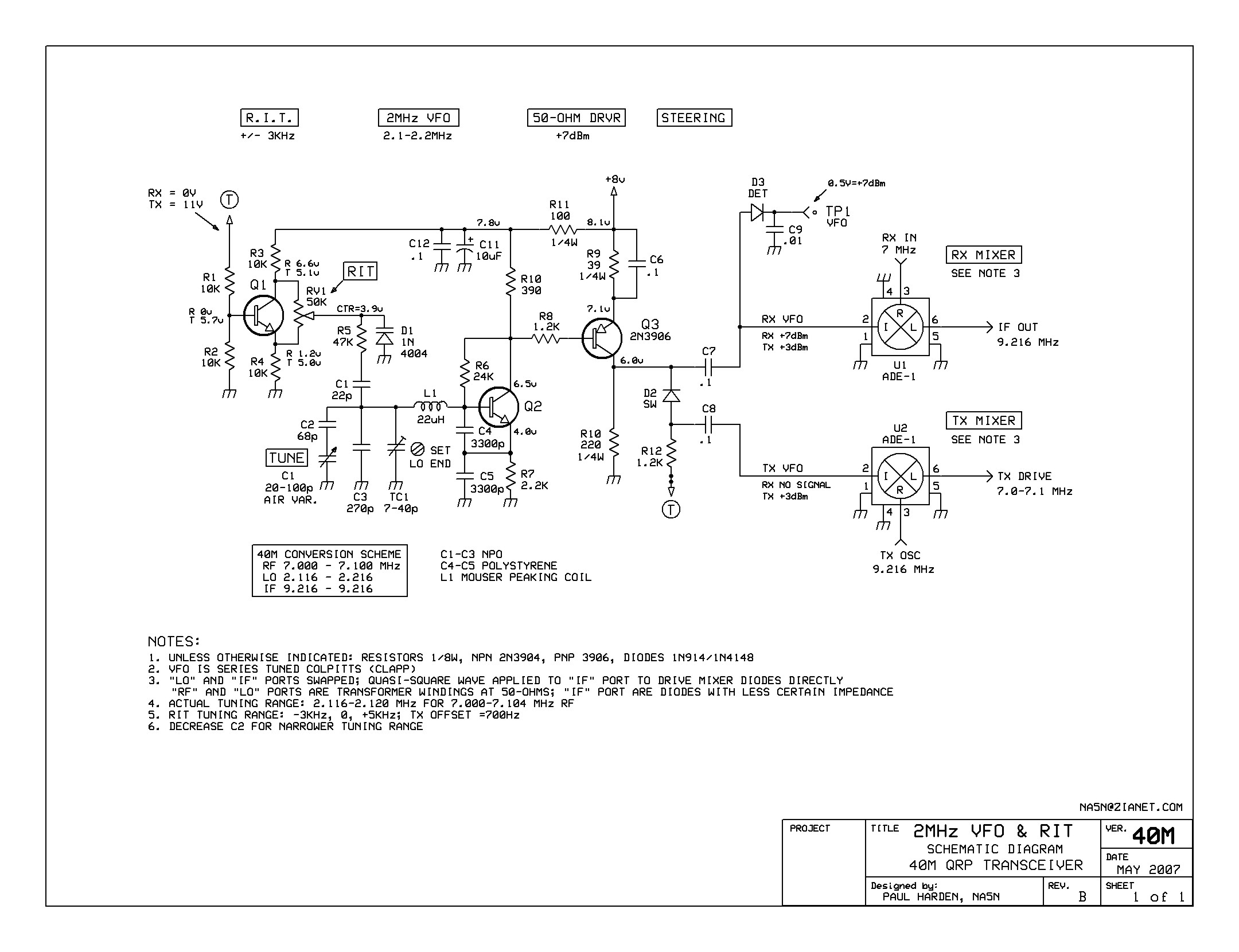

Not exactly Pot Luck, but close. Been awhile since I`ve built a QRP rig, so started a new one. Got the VFO, RIT, BFO and TX OSC built and working. Here`s the VFO/RIT circuit, for what it`s worth. It`s a 2.1-2.2MHz VFO for 40M, using a 9.216 MHz IF, or slight retuning for 4MHz IF. Have enjoyed everyone else`s work. Keep `em coming.
