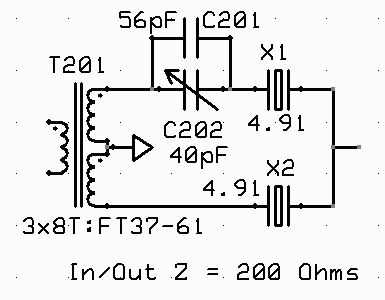

Using two similar Xtals, I could vary the bandwidth from SSB to CW. You may have to swap the Xtals for best performance. I have not inserted this filter in an IF strip yet. Will report later. - Diz 11/21/06
Schematic=
