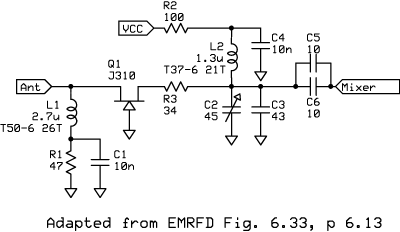

This low-noise JFET preamp gives a gain of about 10 dB before the RF hits the mixer. The output of the amp also contains a single tuned bandpass filter. Another stage of filtering would be preferable, but again this is a design trade-off due to contest restraints. The BP filter is set for a 14 MHz passband, but this may change to fit a different band later. -Jason, NT7S 28 Jan 2007
Schematic=
AuxFile=
NT7S_RF_Preamp.zip
