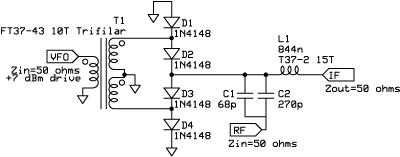

Due to the limited amount of FT37-43 toroids available, I decided to try a single-balanced mixer instead of a double-balanced mixer. This will save me one toroid for later use. The penalty for this is reduced isolation between the IF and RF ports, but given the constraints already in place for this contest, it seemed like a reasonable trade-off. In practice, the mixer seems to do its job, but I have some concerns about port isolation. There is some unwanted RF getting into the receiver at certain frequencies, although I have not yet been able to track down the source of this interference. -Jason, NT7S 28 Jan 2007
