Make any changes or corrections to the data fields. When finished, click on the UPDATE button.
Author
Callsign
Email
Security (anti-spam) Question: How many dits in 72?
Dits
Description
Record #
26
RevDate
Thu, 17 Oct 2013 20:39:28 -0500
Details

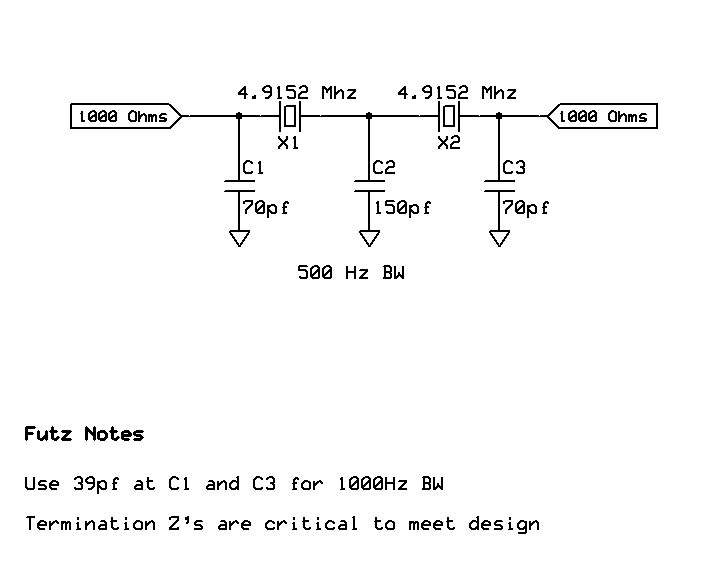

See Futz notes on drawing fo additional hints Change L1 2 and C1 5 for different input and output impedances. Basic filter impedance is 1000 ohms. L1 and L2 are T37-61 cores Changed Files to smaller size ZIP file now contains all Potluck stuff from WA!FXT
Schematic=
WA!FXT 2P Ladder XTAL Filter.gif
AuxFile=
WA!FXT_Potluck.ZIP
