Description	Record # 19
RevDate	Thu, 26 Apr 9696 12:37:49 -0600

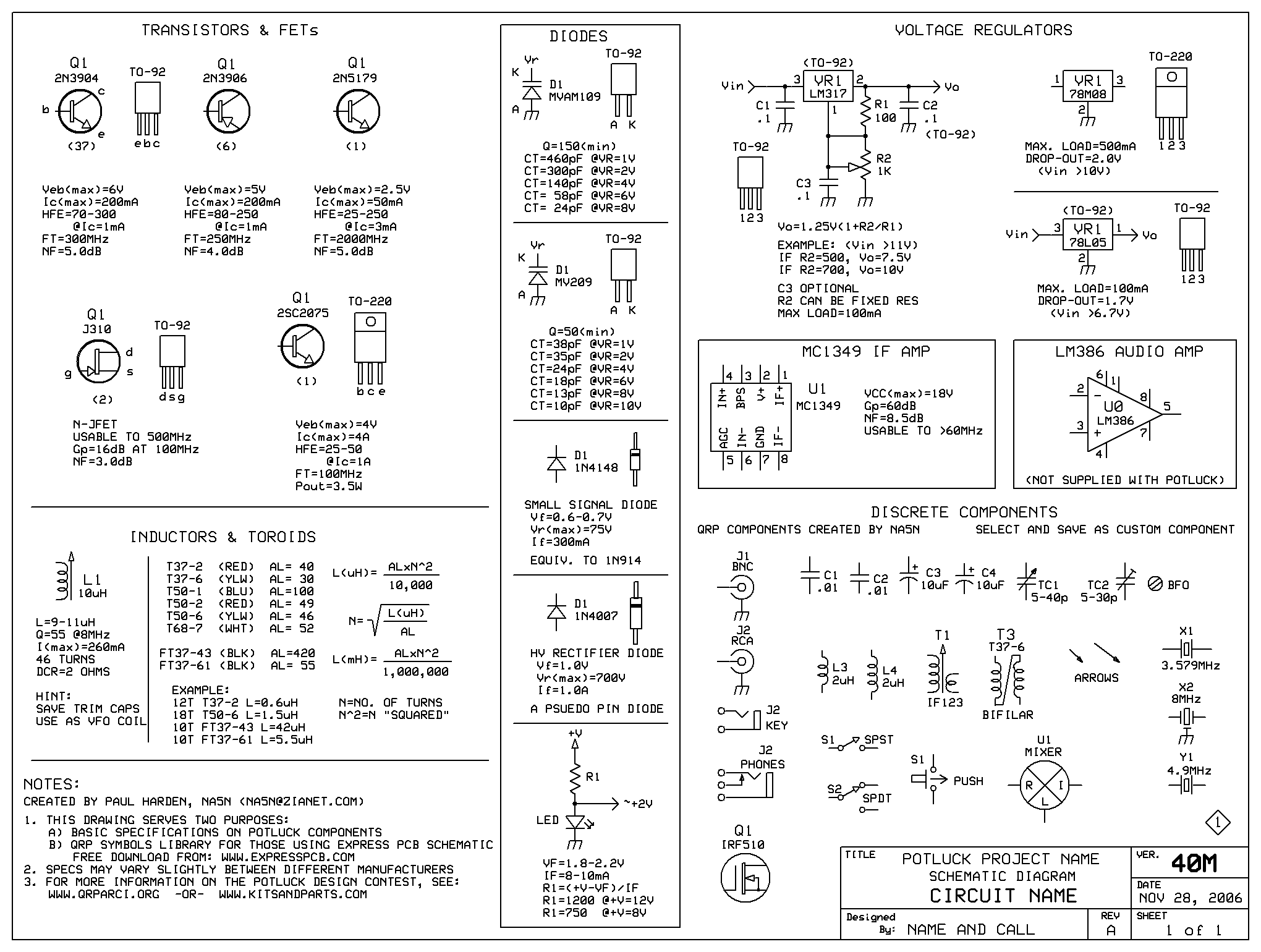

Details	Paul Harden created this great component template geared for the potluck parts, including some useful extra stuff that is handy for anyone doing an electronic design. To use it, you need the free schematic capture program from http://expresspcb.com Download the AUXFILE pl_sch.zip into you expresspcb directory and unzip it. If you need help getting started with expresspcb schematic capture, email me. Posted for Paul, NA5N by Diz, W8DIZ diz@flyingpigmail.com
Schematic=potluck.gif   AuxFile=pl_sch.zip                   Return to SEARCH
