Record #
17
RevDate
Sun, 06 Apr 2014 15:17:11 -0500
Details

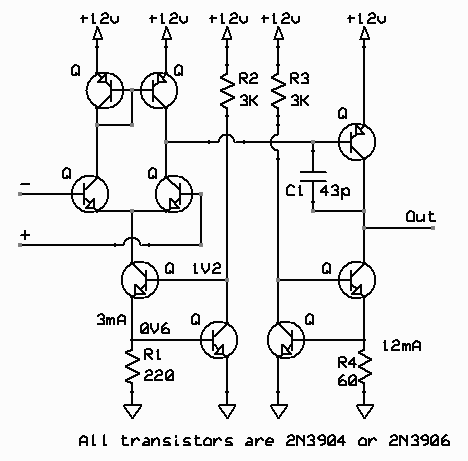

Open circuit gain is about 75 dB (if I read LTspice correctly. Somebody check me out on this. At high gain, the amp is only good for audio but with the opamp set for a 10:1 voltage gain, the amp is good up to about 30 MHz -Diz, 28 Nov 2006
Schematic=
AuxFile=
w8diz_RF_opamp.zip
