Description	Record # 14
RevDate	Sat, 02 Nov 2013 22:39:31 -0500

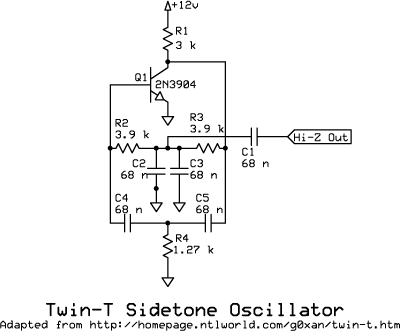

Details	Your basic Twin-T circuit, modified for component values in the Potluck kit. Frequency should be around 600 Hz. Haven`t breadboarded yet, but will soon. - Jason, NT7S 23 Nov 2006 OK, so far the breadboarded version looks good. Puts out 460 mVpp (open circuit) at 655 Hz. Less than 10% deviation isn`t too bad given the caps are probably +/- 10%. The sine wave looks very clean. We`ll see how it sounds once I get an AF amp up and running. - Jason, NT7S 24 Nov 2006
